YEEB / YFEB flat cable Implementation standards:
Flat cable is manufactured according to enterprise standard Q / ZSJ24.
use:
Flat cable is suitable for connection between mobile electrical equipment in harsh environments such as power generation, metallurgy, chemical industry, and port.
Model and name
Model Name silicone wire
YVVB Flexible PVC insulated and sheathed flat cable for mobile
YFFB Nitrile compound insulated and sheathed flat cableYEEB Flat cable for thermoplastic elastomer insulation and sheath movement
YGGB Silicone rubber insulated and sheathed flat cable
YVFB PVC insulated thermoplastic elastomer sheathed mobile flat cable Silicone rubber electric Cable
YVEB Polyvinyl chloride insulated thermoplastic elastomer sheath mobile flat cable
YFEB Nitrile PVC compound insulated thermoplastic elastomer sheathed flat cable for mobile
YFGB Nitrile PVC compound insulated silicone rubber sheathed flat cable for mobile
YGFB Silicon rubber insulated butyronitrile PVC compound sheathed flat cable for mobile
YGEB Silicone rubber insulated thermoplastic elastomer sheathed flat cable for mobile
YEEB / YFEB flat cable product representation method
Products are indicated by model specifications and standard numbers.
For example
(1) Rated voltage 0 6 / 1KV soft PVC insulated and sheathed mobile flat
Cable 3 cores, 25mm2 expressed as: YVVB-0 6/1 3 x 25mm2
(2) Rated flat cable with silicone rubber insulation and sheath for rated voltage 0 6 / 1KV, 4
Core, 6mm2 is expressed as: YGG-0 6/1 4 x 6mm2
(3) Nitrile PVC compound insulated silicone rubber sheath with rated voltage 0 6 / 1KV
Flat cable for mobile, 3-core, 35mm2 is expressed as:
YFGB-0 6/1 3 x 35mm2

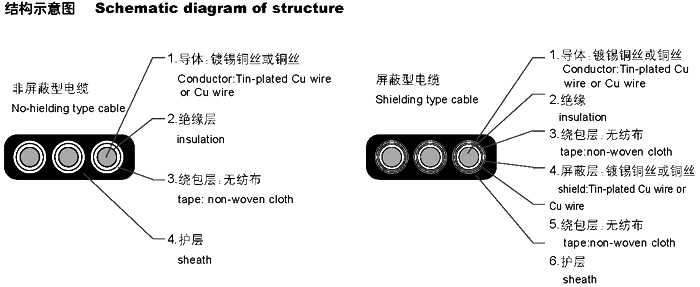

Flat cable / flat cable
Flat cable use characteristics
①Long-term working temperature of cable conductor: PVC insulation, Ding Qing PVC insulation, thermoplastic elastomer insulation does not exceed 70 ℃; silicone rubber insulation does not exceed 180 ℃
②The minimum bending radius of the cable is not less than 6 times the outer diameter of the cable.
③Minimum ambient temperature during cable operation: PVC insulation is not lower than 0 ° C, Dingqing PVC composite insulation, thermoplastic elastomer insulation is not lower than -20 ° C; silicone rubber insulation is not lower than -40 ° C.
④ Cable moving speed Polyvinyl chloride insulation, butyronitrile polyvinyl chloride insulation, thermoplastic elastomer insulation does not exceed 15m / s, silicone rubber insulation does not exceed 1.25m / s.
