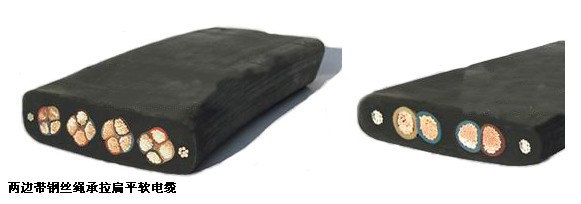

YFFB-FJL flat flexible cable with steel wire tensile load bearing on both sides has the characteristics of cold resistance, softness, wear resistance and oil resistance, suitable for AC rated voltage0.6/1KVAnd the following power transmission lines and control, lighting, communication lines for driving, trolley, transmission machinery and other mobile electrical appliances with special requirements of cold resistance and oil prevention. ceramic thermocouple has been widely used in metallurgy, power, ship, port and other industries.The conductor core adopts soft structure to ensure the good flexibility of the cable.
NitrileFlat cableDetailed introduction of
1、YFFB-FJL flat flexible cable with steel wire tensile load bearing on both sides Overview:
The load-bearing flat flexible cable has the characteristics of cold resistance, softness, wear resistance and oil resistance, which is suitable for AC rated voltage0.6/1KVAnd the following power transmission lines and control, lighting, communication lines for driving, trolley, transmission machinery and other mobile electrical appliances with special requirements of cold resistance and oil prevention. This product has been widely used in metallurgy, tc thermocouple power, ship, port and other industries.The conductor core adopts soft structure to ensure the good flexibility of the cable.
The insulation and protective pt100 RTD layer materials are made of butadiene polymer, which can improve the flexibility, corrosion resistance and cold resistance of the cable.
The color separation of insulated core provides convenience for laying and Assembly Thermocouple installation.
Steel wire rope or other load-bearing elements can be added on both sides of the cable core according to the needs of customers(YVFB-Gtype)。
2、 Features:
Especially soft, especially resistant to bending, Boiler wear-resistant thermocouple moving back and forth, stable and not twisted.
Indoor and outdoor, suitable for temperature, acid, alkali, oil and salt, can be protected.
Strict material selection, advanced technology, reliable performance, long life.
3、 Specification and model:
| Model | Name | Rated voltage | Main uses | The tensile force is less thanN |
| YFFB | NBR PVC insulated and sheathed flat flexible cable | 450/750V | Mainly used for lifting, conveyor, small and medium-sized excavator, loading and unloading machine | 2000/100m |
| YFFB-F | NBR PVC insulated and sheathed composite flat flexible cable | 450/750V | Mobile machinery mainly used for large and medium-sized field operations, such as cranes, excavators, stackers, etc | |
| YEFPB | EPDM insulated nbvc insulated and sheathed shielded flat flexible cable Customized Thermocouple | 3.6/6KV | ||
| YFFB-L | NBR PVC insulation and sheath bearing(Wire reinforced movement)Flat flexible cable | 300/500V | Mainly used for elevators and other mobile machinery of low rise buildingsControl cable | |
| YFFB-JL | Bunching and pulling of NBR PVC insulation and sheath(Wire reinforced movement)Flat flexible cable | 300/500V | Mainly used for the control cable of elevator in high-rise building | |
| YFFB-FJL | NBR PVC insulation and sheath stranding, pulling, control and communication composite(Wire reinforced movement)Flat flexible cable | 300/500V | Mainly used for control cable of elevator |
| Code name | Code meaning |
| Y | move |
| VF (Flat class use”FF”) | NBR cableseries |
| L | Cheng La(Wire added) |
| B | Flat cable,Flat cable |
| F | Composite |
| P | Copper braided shield |
| R | Stranded conductor |
NBR PVC insulated and sheathed flat flexible cable
YVFB (Ordinary type)
YVFB-G (Strengthening type)
YVFBP (Shielding type)
YVFB-TH (Three prevention types)
| Model | name |
| YVFB | NBR insulated and sheathed mobile flat flexible cable |
| YVFBP | NBR insulated and sheathed copper braided shielded mobile flat flexible cable |
| YVFB-G | NBR insulated and sheathed steel wire reinforced mobile flat flexible cable |
| Model | Rated voltage（V) | Core number | Nominal cross sectionMm2 |
| YVFB | 450/750 V | 2-28 | 0.75-6 |
| YVFBP | 450/750 V | 2-10 | 2.5-150 |
| YVFB-G | 450/750 V | 2-28 | 0.75-150 |
4、 Main performance of the product(accord withQ/ZB01-2002)
Rated working voltage of cable AC450/750VAnd below.
The ambient temperature of the cable is-40 C~70 C。
The minimum bending radius of the cable is10Times.
Conductor core of each section20 CMaximum DC resistance(Romax)As follows:(accord withGB/T3956-1997)
| SectionMm2 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Romax (omega /km) |
26.0 | 19.5 | 13.3 | 7.98 | 4.95 | 3.30 | 1.91 | 1.21 | 0.780 | 0.551 | 0.386 | 0.272 | 0.206 | 0.161 | 0.129 | 0.106 | 0.0801 |
Insulated core of each section70 CMinimum insulation resistance(Rimin)As follows:(accord withGB5023-1997)
| SectionMm2 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 | 70~95 | 120~185 | 240 |
| Romax (M.M) | 11 | 10 | 10 | 9 | 7 | 6 | 5.6 | 4.6 | 4.4 | 3.8 | 3.7 | 3.2 | 2.9 | 2.8 |
Exchange between finished cable cores50Hz,2.5KvTest voltage action5minNo breakdown.
Minimum tensile strength of insulation and sheath10N/mm2, minimum elongation at break150%,-40 CLow temperature winding without crack,-40 CMinimum elongation at low temperature20%。
Correction coefficient of current carrying capacity at different temperatures in different environments(Ki)
| Temperature | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
| Ki | 1.41 | 1.35 | 1.29 | 1.22 | 1.15 | 1.08 | 1.00 |
| Temperature | 45 | 50 | 55 | 60 | 65 | 70 | |
| Ki | 0.91 | 0.82 | 0.71 | 0.58 | 0.41 | 0.18 |
